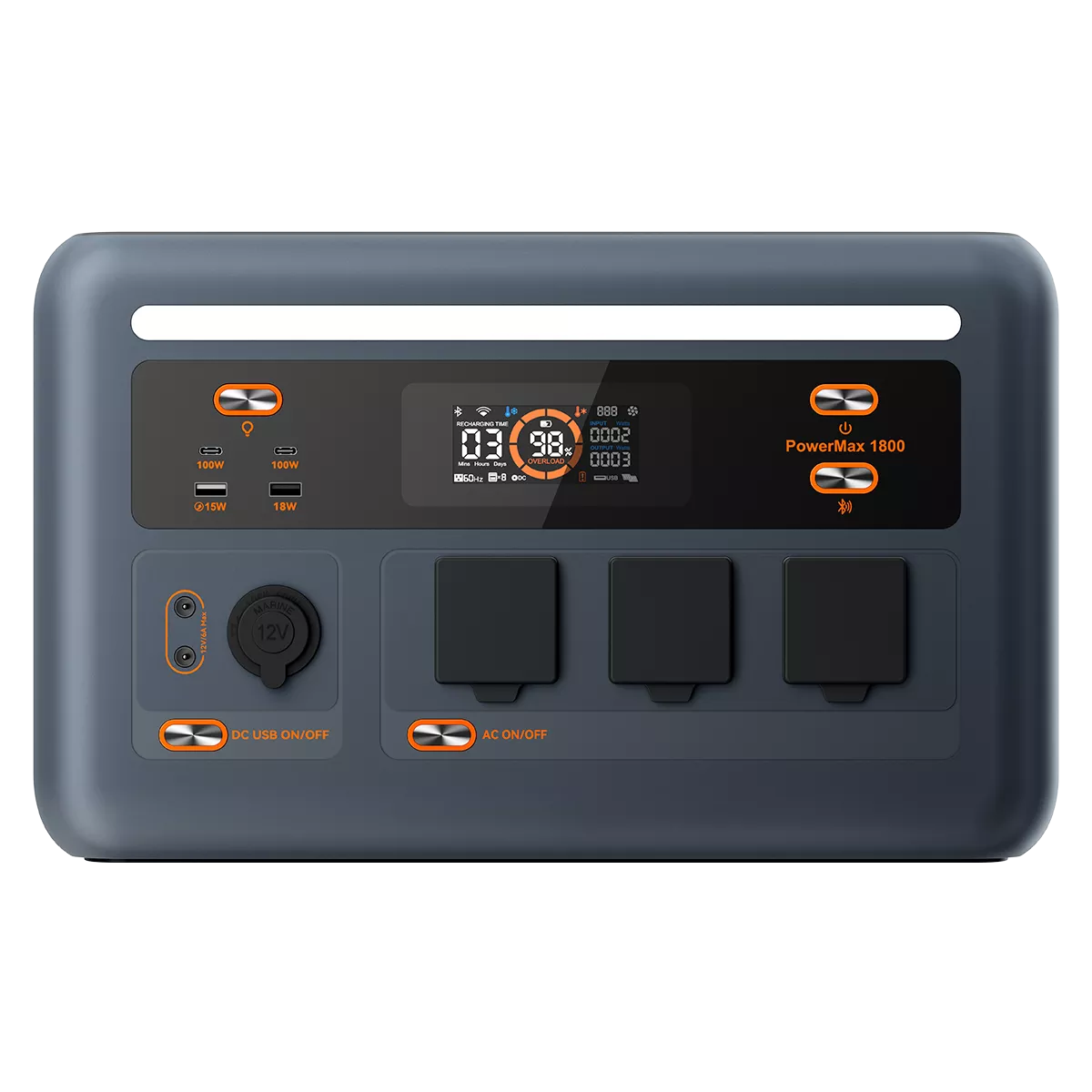

PowerMax 1800

Videos FAQ Manuals & Downloads
Battery InfoCapacity1,024Wh
Scalability1,024Wh-2048Wh
PowerMax 1800 + BP1800*1
TypeLiFePO₄(Lithium Iron Phosphate)
Life Cycles3,500+ Cycles to 80% Original Capacity
Shelf-lifeRecharge to 80% Every 3-6 Months
Management SystemBMS
OUTPUTPowerRated Power: 1800W, Surge Power: 2400W
Inverter TypePure Sine Wave
AC Outlets3* 1800W Max
USB-A Ports1* 15W+1*18W
USB-C Ports2* 100W (Max)
DC5521 Ports2* 60W
Car Cigarette Lighter Port1* 120W (Max)
Wireless Charging Pads1* 15W
INPUTAC Fast Charging1.6 Hours (Full Charge) 700W(Max)
Solar Charging1.5 Hours (Full Charge) 800W(Max)
GeneralPass-through ChargingYes
UPS Switching Time0.01s
Dimensions (L x W x H)39*23*25.4cm/ 15.35×9.06×10in
WeightApprox. 15.5kg/34.2lbs
Operating Temperature32° to 113°F (0℃-45℃)
Storage Temperature32°F to 113°F (0℃-45℃)
Warranty5 Years
CertificationsEurope: CE/RED/ROHS (EU)
Japan: PSE/METI/IEC
America: FCC/DOE/CEC/FCC/UL
South Africa: IEC62368
